Built in 1775, “American Turtle” was the world’s first submersible to be used in combat

turtle

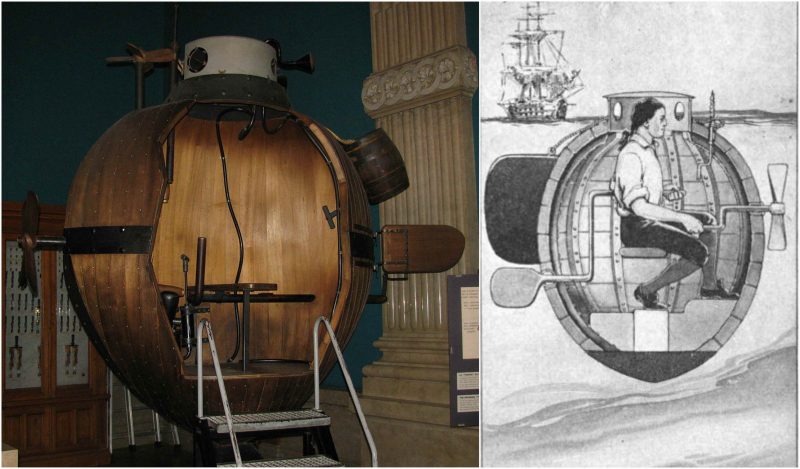

Turtle or also known as American Turtle was the world’s first submersible with a documented record of use in combat. She was built in Old Saybrook, Connecticut in 1775 by American David Bushnell as a means of attaching explosive charges to ships in a harbor. Bushnell designed her for use against British Royal Navy vessels occupying North American harbors during the American Revolutionary War. Connecticut Governor Jonathan Trumbull recommended the invention to George Washington; although the commander-in-chief had doubts, he provided funds and support for the development and testing of the machine.
Source
Source

In the early 1770s, David Bushnell, a Yale College freshman and Patriot, began experimenting with underwater explosives. By 1775, with tensions on the rise between the Thirteen Colonies and Great Britain, Bushnell had practically perfected these explosives.That year he also began work near Old Saybrook, Connecticut on a small manned submersible craft capable of affixing such a charge to the hull of a ship. The charge would then be detonated by a clockwork mechanism that released a musket firing mechanism, probably a flintlock, adapted for the purpose.According to Dr. Benjamin Gale, a doctor who taught at Yale, the firing mechanism and other mechanical parts of the submarine were manufactured by a New Haven clockmaker named Isaac Doolittle.

1976 functional replica that is now at the Connecticut River Museum Source
1976 functional replica that is now at the Connecticut River Museum Source

Named for its shape, Turtle resembled a large clam as much as a turtle; it was about 10 feet (3.0 m) long (according to the original specifications), 6 feet (1.8 m) tall, and about 3 feet (0.9 m) wide, and consisted of two wooden shells covered with tar and reinforced with steel bands.It dived by allowing water into a bilge tank at the bottom of the vessel and ascended by pushing water out through a hand pump. It was propelled vertically and horizontally by hand-cranked propellers. It also had 200 pounds (91 kg) of lead aboard, which could be released in a moment to increase buoyancy. Manned and operated by one person, the vessel contained enough air for about thirty minutes and had a speed in calm water of about 3 mph (2.6 kn; 4.8 km/h).



A cutaway full size replica of the Turtle on display at the Royal Navy Submarine Museum, Gosport, UK.Source
A cutaway full size replica of the Turtle on display at the Royal Navy Submarine Museum, Gosport, UK.Source

General Washington then authorized an expedition by Turtle in New York Harbor.At 11:00 PM on September 6, one of the volunteers, Sergeant Ezra Lee, took the Turtleout to attempt an attack on Admiral Richard Howe’s flagship, HMS Eagle,then moored off Governors Island.

Drawing of a cutaway view of Turtle's interior.Source
Drawing of a cutaway view of Turtle’s interior.Source

According to Lee’s account, Turtle was towed by rowboats as close as was felt safe to the British fleet. He then navigated for more than two hours before slack tide made it possible to reach Eagle.

His first attempt to attach the explosive failed because the screw struck a metal impediment. Lee tried and tried to turn the drill, but could not achieve penetration. A popular story held that he failed due to the copper lining covering the ship’s hull. The Royal Navy had recently began installing copper sheathing on the bottoms of their warships to protect from damage by woodworms and other marine life, however the lining was paper-thin and could not have stopped Lee from drilling through it. Bushnell believed Lee’s failure was probably due to an iron plate connected to the ship’s rudder hinge.



A diagram showing the front and rear of Turtle Source
A diagram showing the front and rear of Turtle Source

When Lee attempted another spot in the hull, he was unable to stay beneath the ship, and eventually abandoned the attempt. It seems more likely that he was suffering from fatigue and carbon dioxide inhalation, which made him confused and unable to properly carry out the process of drilling through the Eagle’s hull. Lee reported British soldiers on Governors Island spotted the submersible and rowed out to investigate. He then released the charge (which he called a “torpedo”), “expecting that they would seize that likewise, and thus all would be blown to atoms.”Suspicious of the drifting charge, the British retreated back to the island. Lee reported that the charge drifted into the East River, where it exploded “with tremendous violence, throwing large columns of water and pieces of wood that composed it high into the air.”It was the first recorded use of a submarine to attack a ship;however, the only records documenting it are American. British records contain no accounts of an attack by a submarine or any reports of explosions on the night of the supposed attack on HMS Eagle.



Bushnell mines destroying a small British boat.Source
Bushnell mines destroying a small British boat.Source

According to British naval historian Richard Compton-Hall, the problems of achieving neutral buoyancy would have rendered the vertical propeller useless. The route Turtle would have had to take to attackEagle was slightly across the tidal stream which would, in all probability, have resulted in Lee becoming exhausted.In the face of these and other problems, Compton-Hall suggests the entire story was fabricated as disinformation and morale-boosting propaganda, and if Lee did carry out an attack it was in a covered rowing boat rather than Turtle.



Bushnell’s submarine torpedo boat, 1776. Source
Bushnell’s submarine torpedo boat, 1776. Source

On October 5, Sergeant Lee again went out in an attempt to attach the charge to a frigate anchored off Manhattan. He reported the ship’s watch spotted him, so he abandoned the attempt. The submarine was sunk some days later by the British aboard its tender vessel near Fort Lee, New Jersey. Bushnell reported salvaging Turtle, but its final fate is unknown.Washington called the attempt “an effort of genius”, but “a combination of too many things was requisite” for such an attempt to succeed.



 Cutaway replica at the Oceanographic Museum, Monaco Source
Cutaway replica at the Oceanographic Museum, Monaco Source

Bushnell’s work began to receive more attention in August 1775, when Franklin was informed of it. Despite Bushnell’s insistence on secrecy surrounding his work, news of it quickly made its way to the British, abetted by a Loyalist spy working for New York Congressman James Duane. On November 16, 1775, a coded message to William Tryon, the last royal governor of the Province of New York, brought Bushnell’s work to British attention.

Cutaway replica at the Submarine Force Library and Museum, Groton, Connecticut. Source
Cutaway replica at the Submarine Force Library and Museum, Groton, Connecticut. Source

The details of the report were highly inaccurate, implying Turtle was nearly ready to be deployed in Boston harbor against the fleet that was part of the British siege effort there. In fact, Bushnell and his brother Ezra were still testing the machine in the Connecticut River.In the spring of 1776, after the British withdrew from Boston, Bushnell offered the submarine to General George Washington for use in the defense of New York City. Washington agreed, and provided some funding to the inventor to prepare the vessel for deployment.



Several attempts were made using Turtle to affix explosives to the undersides of British warships in New York Harbor in 1776. All failed, and her transport ship was sunk later that year by the British with the submarine aboard. Bushnell claimed eventually to have recovered the machine, but its final fate is unknown. Modern replicas of Turtle have been constructed; the Connecticut River Museum, the U.S. Navy’s Submarine Force Library and Museum, the Royal Navy Submarine Museum and the Oceanographic Museum (Monaco) have them on display.
