The pantelegraph was the first machine that could transmit pictures electronically and is considered the precursor to the modern day fax machine

David Goran



The pantelegraph (named by combining the words “pantograph” and “telegraph”) was an early form of facsimile machine transmitting over normal telegraph lines developed by Giovanni Caselli. Used commercially in the 1860’s, it was the first device to enter practical service, and could send handwriting, signatures, and drawings up to 15 cm by 10 cm. Using electrochemistry, images were sent via a pantelegraph in one area and reproduced by a telegraph in another area. This system was actually the first prototype of a fax machine.

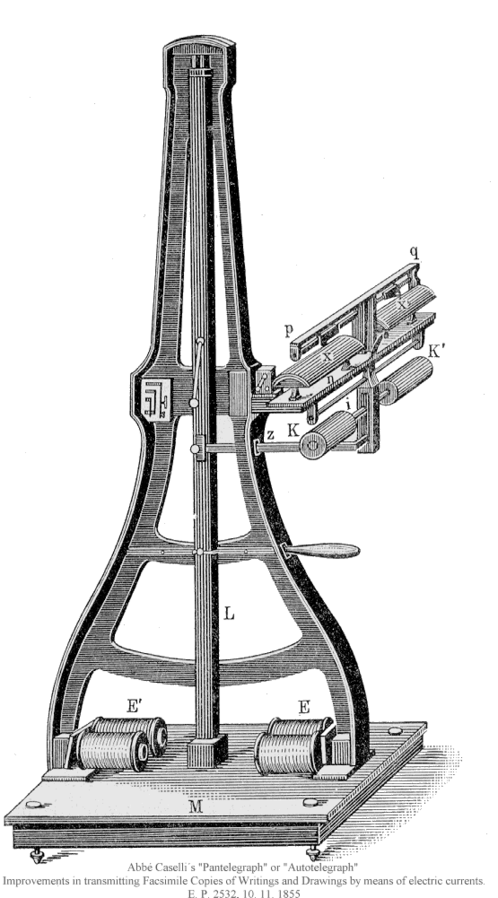

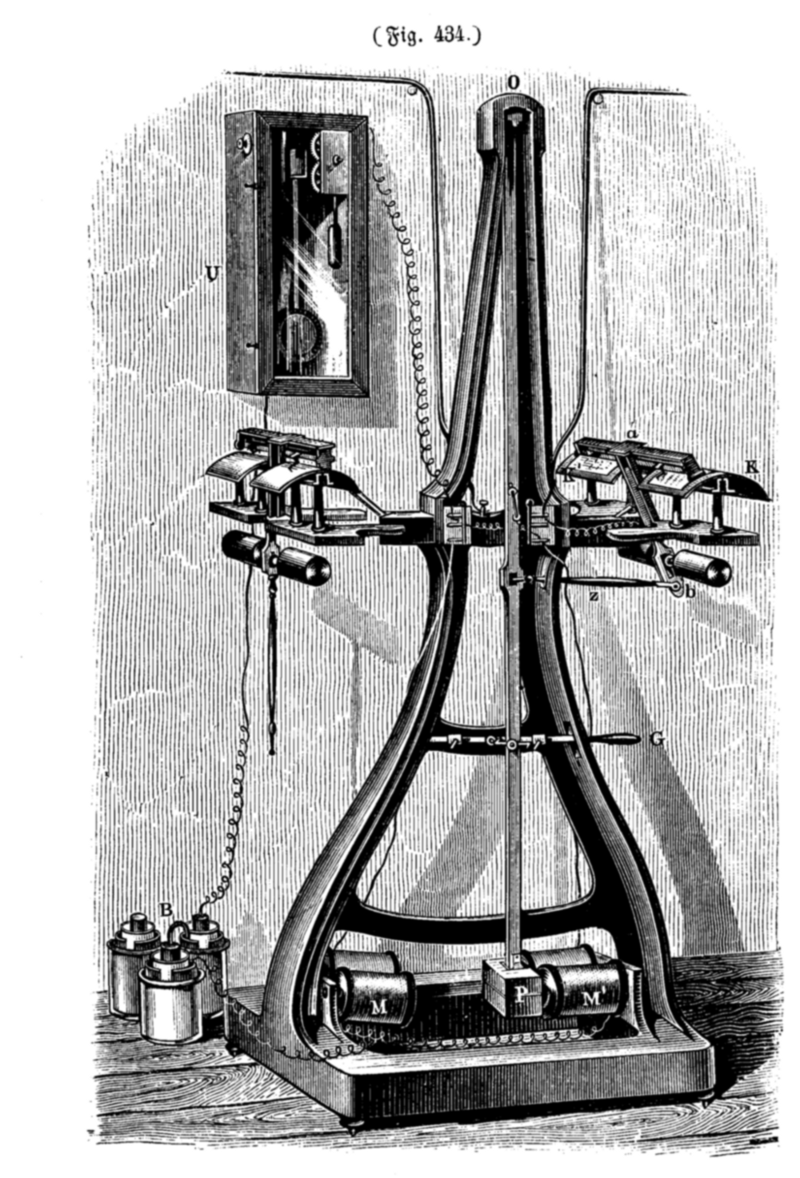

Caselli’s pantelegraph patented in 1861. source

Caselli’s pantelegraph patented in 1861. source

While employed teaching physics at the University of Florence, Giovanni Caselli, an Italian physics professor, devoted much time to research into the telegraphic transmission of images. The major problem of the time was to get perfect synchronization between the transmitting and receiving parts so they would work together correctly. Caselli developed an electrochemical technology with a “synchronizing apparatus” (regulating clock) to make the sending and receiving mechanisms work together that was far superior to any technology Bain or Bakewell had.

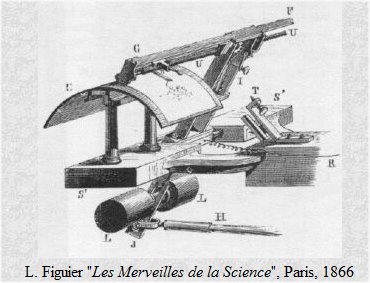

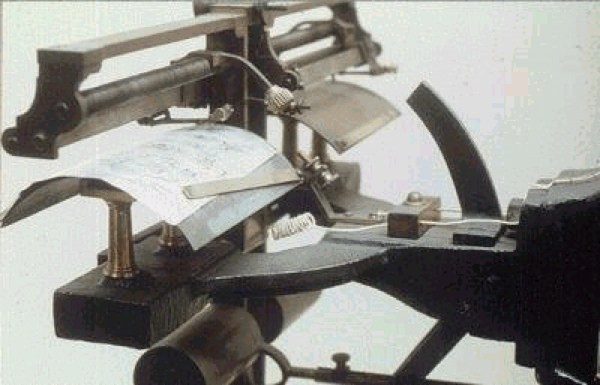

Pantelegraph “reading“ tinfoil mechanism. source

Pantelegraph “reading“ tinfoil mechanism. source

The pantelegraph used a regulating clock with a pendulum which made and broke the current for magnetizing its regulators and ensured that the transmitter’s scanning stylus and the receiver’s writing stylus remained in step. A large pendulum was used weighing 8 kg (18 lb), mounted on a frame 2 m (6 ft 7 in) high, to provide a time base. Two messages were written with insulating ink on two fixed metal plates; one plate was scanned as the pendulum moved to the right and the other as the pendulum moved to the left so that two messages could be transmitted per cycle. The receiving apparatus reproduced the transmitted image by means of paper impregnated with potassium ferricyanide, which darkened when an electric current passed through it from the synchronized stylus. In operation the Pantelegraph was relatively slow; a sheet of paper 111 mm × 27 mm, with about 25 handwritten words, took 108 seconds to transmit.

The most common use of the Pantelegraph was for signature verification in banking transactions.

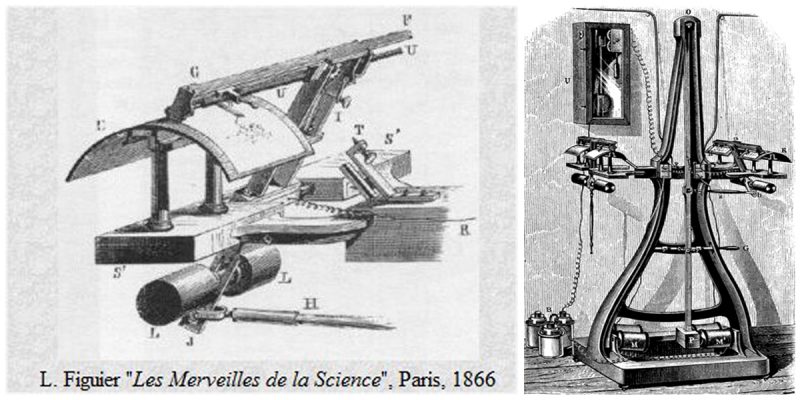

Using electrochemistry, images were sent via a pantelegraph in one area and reproduced by a telegraph in another area. source

Using electrochemistry, images were sent via a pantelegraph in one area and reproduced by a telegraph in another area. source

By 1856, Caselli had made sufficient progress for Leopold II, Grand Duke of Tuscany to take an interest in his work, and the following year he travelled to Paris, where he was assisted by the engineer Paul Gustave Froment, to whom he had been recommended by Léon Foucault, to construct the first Pantelegraph. In 1858, Caselli’s improved version was demonstrated by French physicist Alexandre-Edmond Becquerel at the French Academy of Sciences in Paris.

On 10 May 1860 Napoleon III visited Froment’s workshop to observe a demonstration of the device and was so enthused by the device that he secured access for Caselli to the telegraph lines he needed to further his work, from Froment’s workshops to the Paris Observatory. In November 1860, a telegraph line between Paris and Amiens was allotted to Caselli which enabled a true long-distance experiment, which was a complete success, with the signature of the composer Gioacchino Rossini as the image sent and received, over a distance of 140 km (87 miles).

The pantelegraph system transmitted nearly 5,000 faxes in the first year. Pantelegraph image, Paris to Lyons on 10 Feb 1862. source

The pantelegraph system transmitted nearly 5,000 faxes in the first year. Pantelegraph image, Paris to Lyons on 10 Feb 1862. source

The first “pantelegram” was sent from Lyons to Paris on 10 February 1862. The Corps législatif later ordered the installation of the pantelegraph on the railway line between the two cities, and from February 1863, the public was able to use it. French law was enacted in 1864 for the pantelegraph facsimile system to be officially accepted. The next year in 1865 the operations started with the Paris to Lyons line and extended to Marseille in 1867.

Caselli pantelegraph images were blue ink. source

Caselli pantelegraph images were blue ink. source

Russian Tsar Nicolas I installed an experimental service between his palaces in Saint Petersburg and Moscow between 1864 and 1865. In 1867 the Director of Telegraphs, de Vougy, had a second line set up from Lyons to Marseille; the transmission cost was 20 centimes per square centimetre of an image and the service was operated until 1870.

The pantelegraph was in operation in France until 1870. source

The pantelegraph was in operation in France until 1870. source

There are few remaining examples of the original pantelegraph. A significant display of the pantelegraph was mounted in 1961 at the Musée National des Techniques, when a centennial celebration of the device was performed between Paris and Marseille. Again in 1982, their reliability was displayed; at the Postal Museum in Riquewihr, two pantelegraphs were used for six hours a day, for several months, performing without error.

An original specimen is also kept on display at the Istituto Della Porta in Naples.

Some of the other Caselli’s inventions were: an electrical marine torpedo which came back to the launching point in the event of missing the mark, a hydraulic press and an instrument that measures the speed of  locomotives.
